PIER 37 WASTE
TO ENERGY
THE CLOUDS LOOK WEIRD!

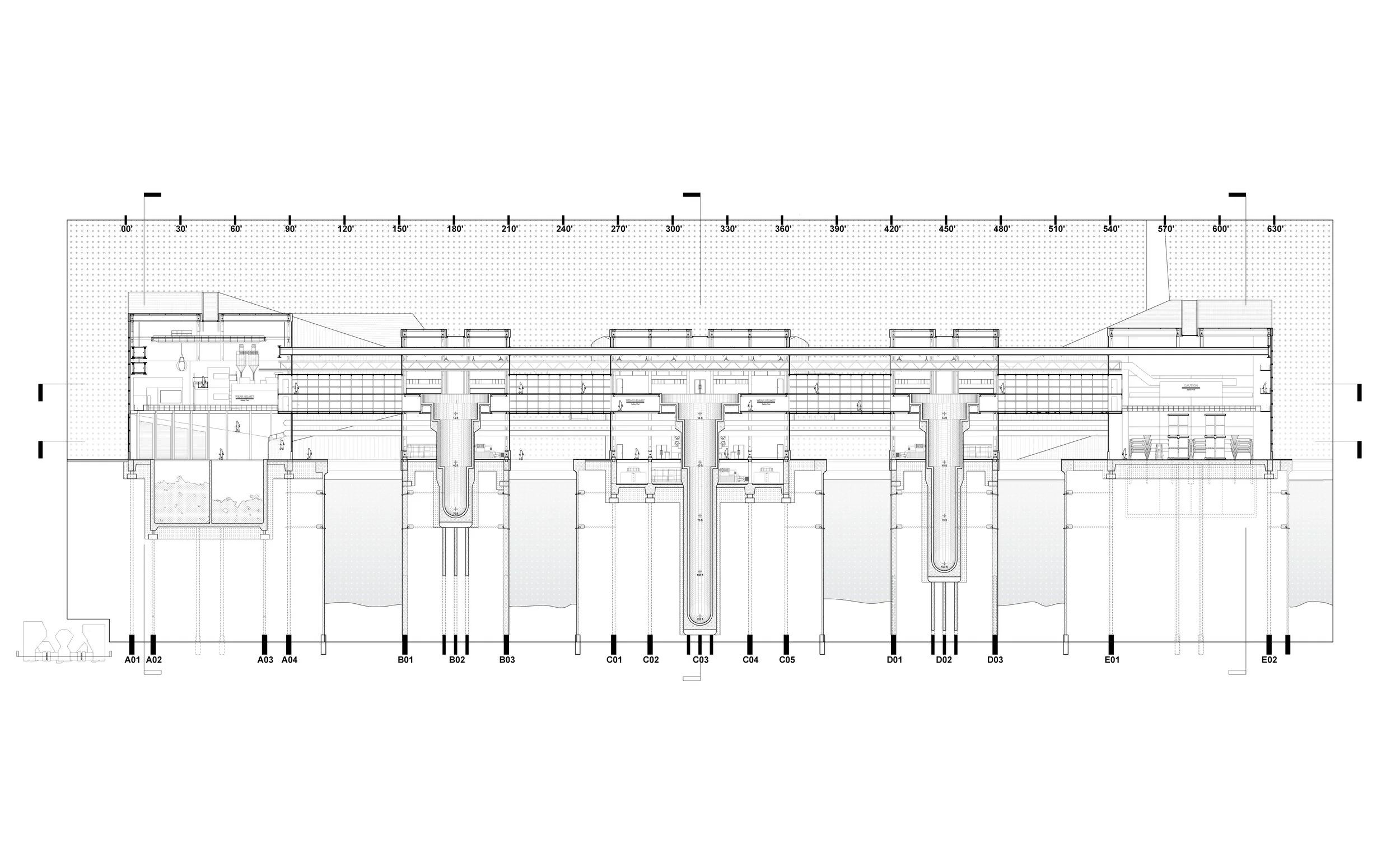

SECTION ORTHOGRAPH
DIGITAL
1980X1080 PX
Makeena

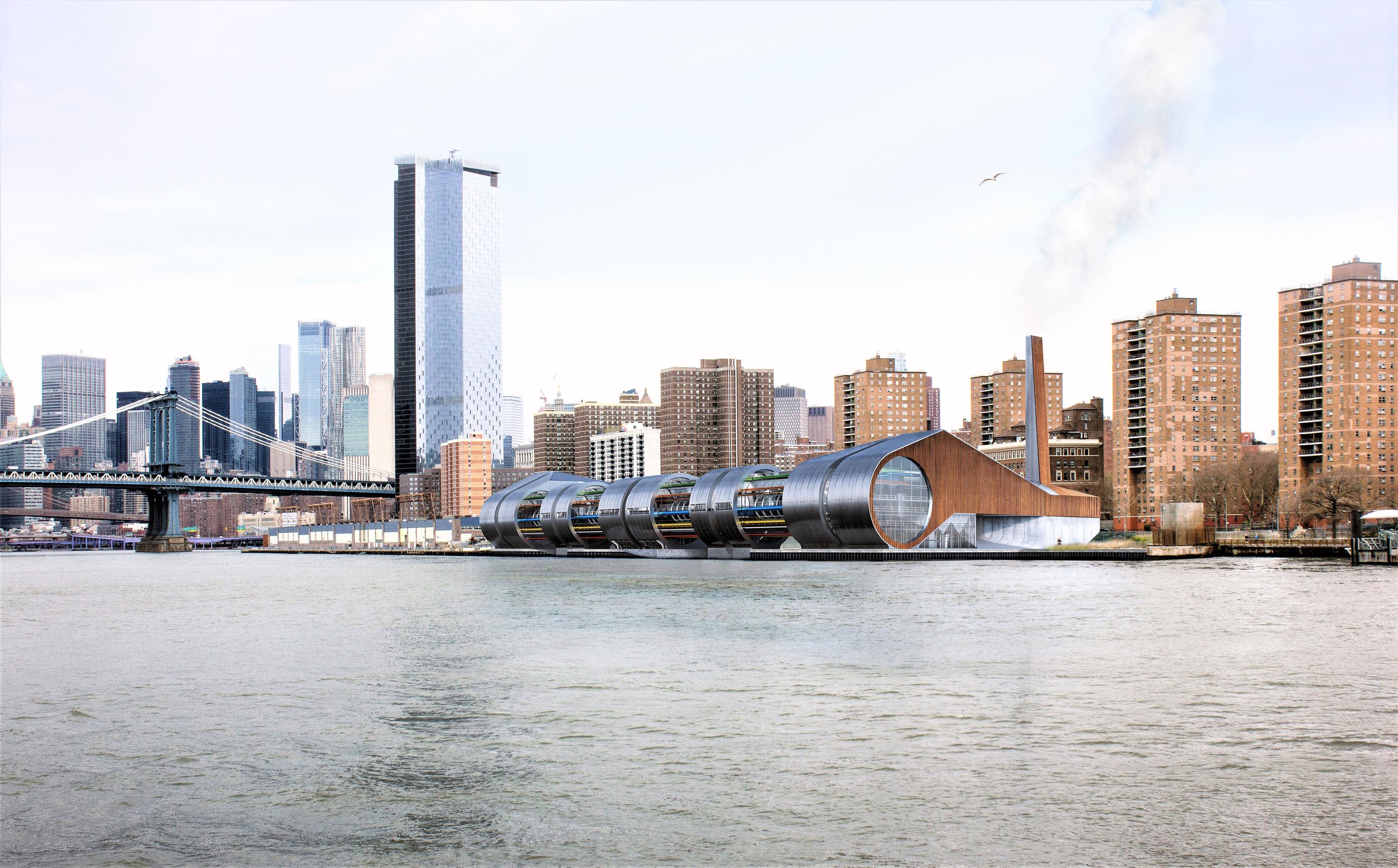

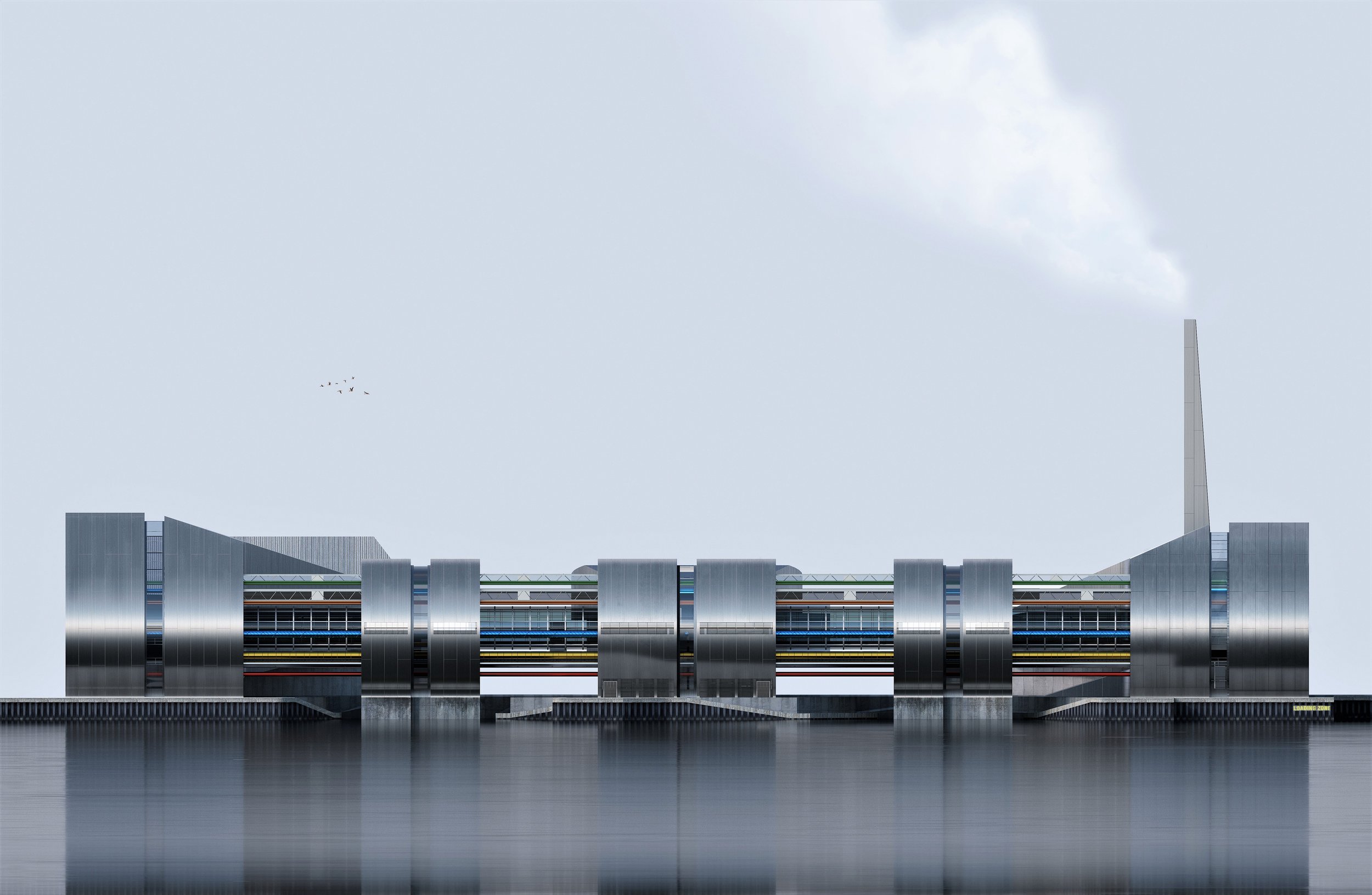

East River Facade
DIGITAL
1980X1080 PX
DEEP DIVE 125FT INSIDE A
WASTE-TO-ENERGY AND RECYCLING CENTER.

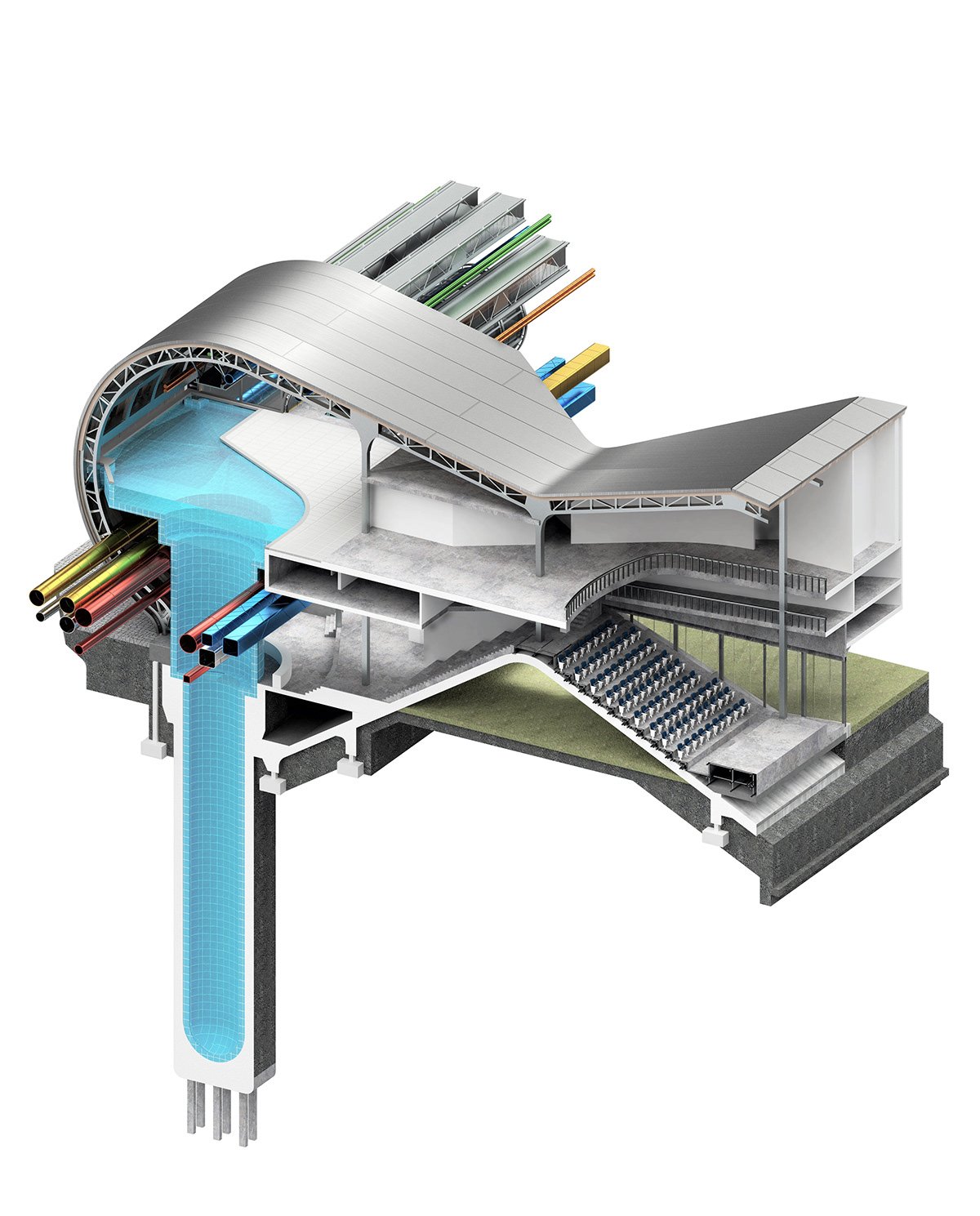

Deep Diving pool Facility
Chunk model
DIGITAL
1980X1080 PX

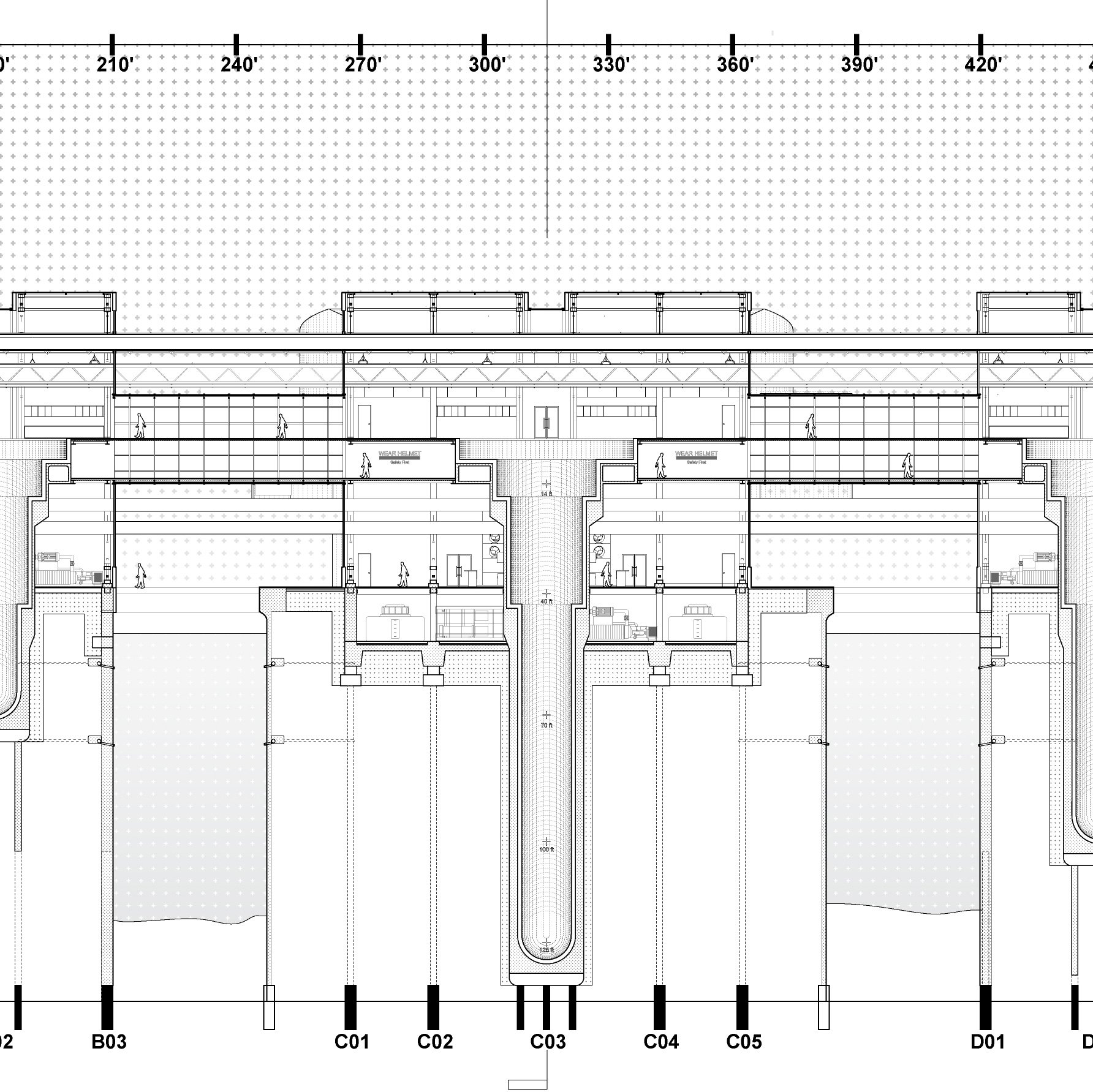

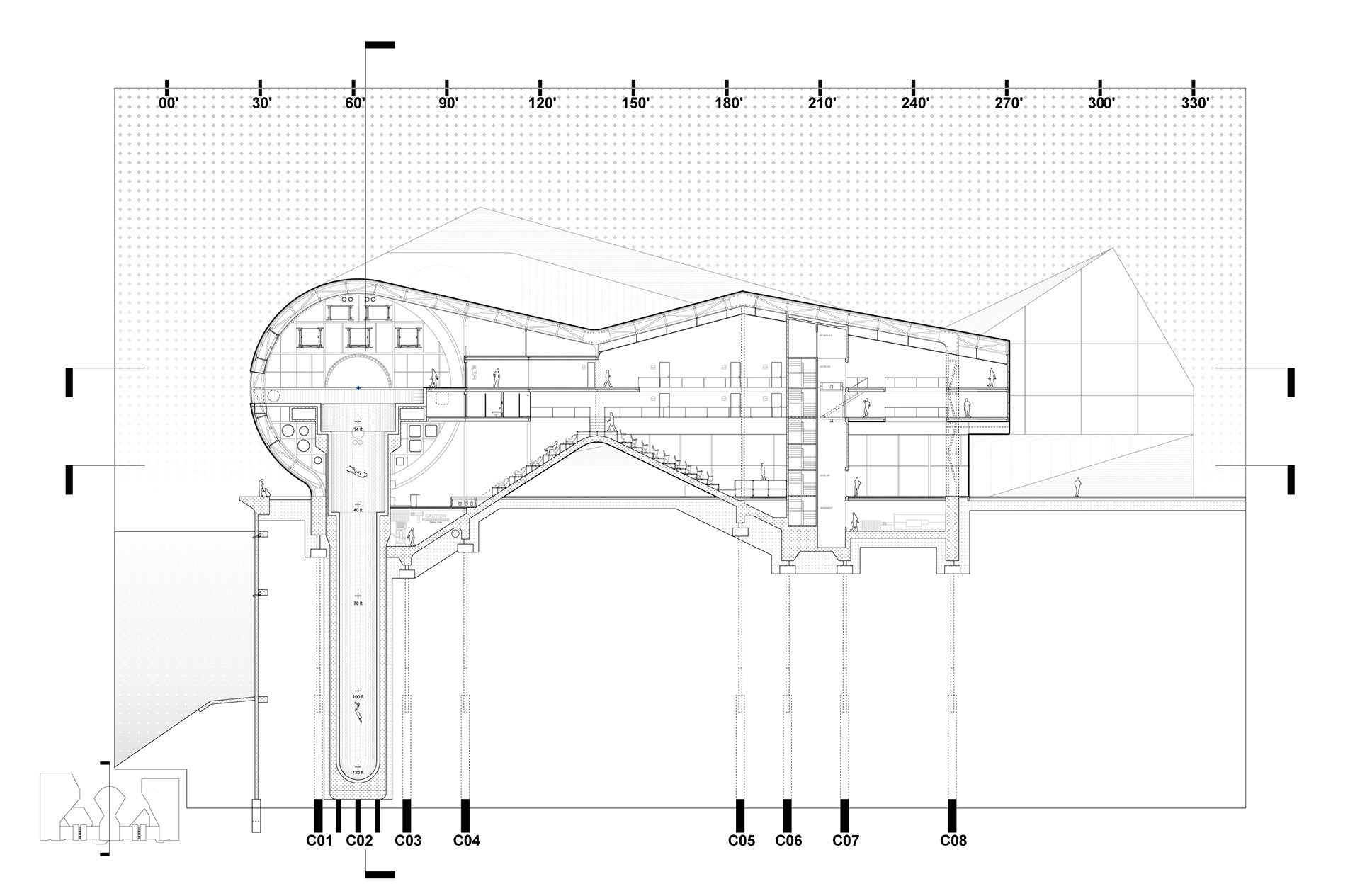

Deep Diving pool Facility

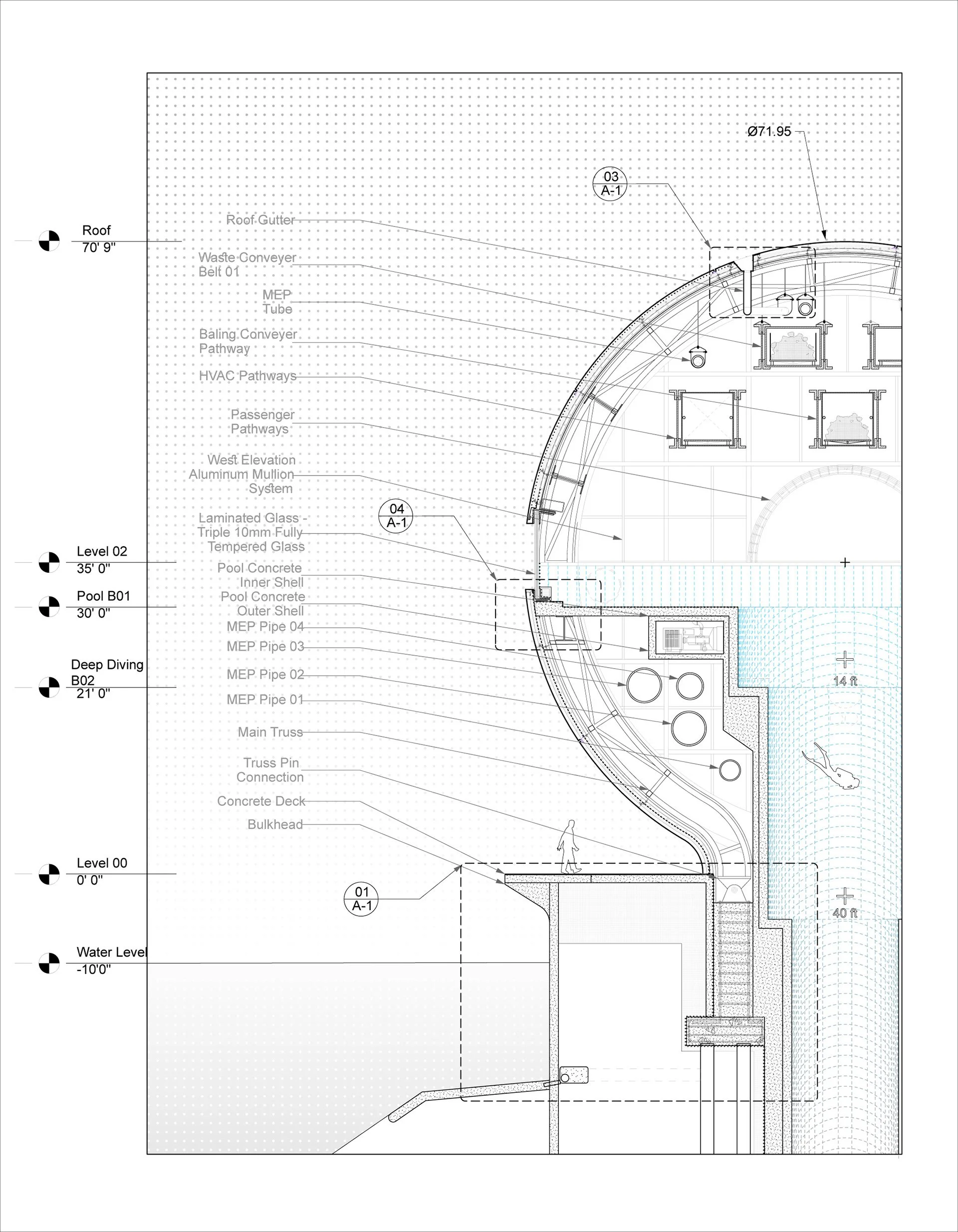

Orthographic construction Section
DIGITAL
1980X1080 PX

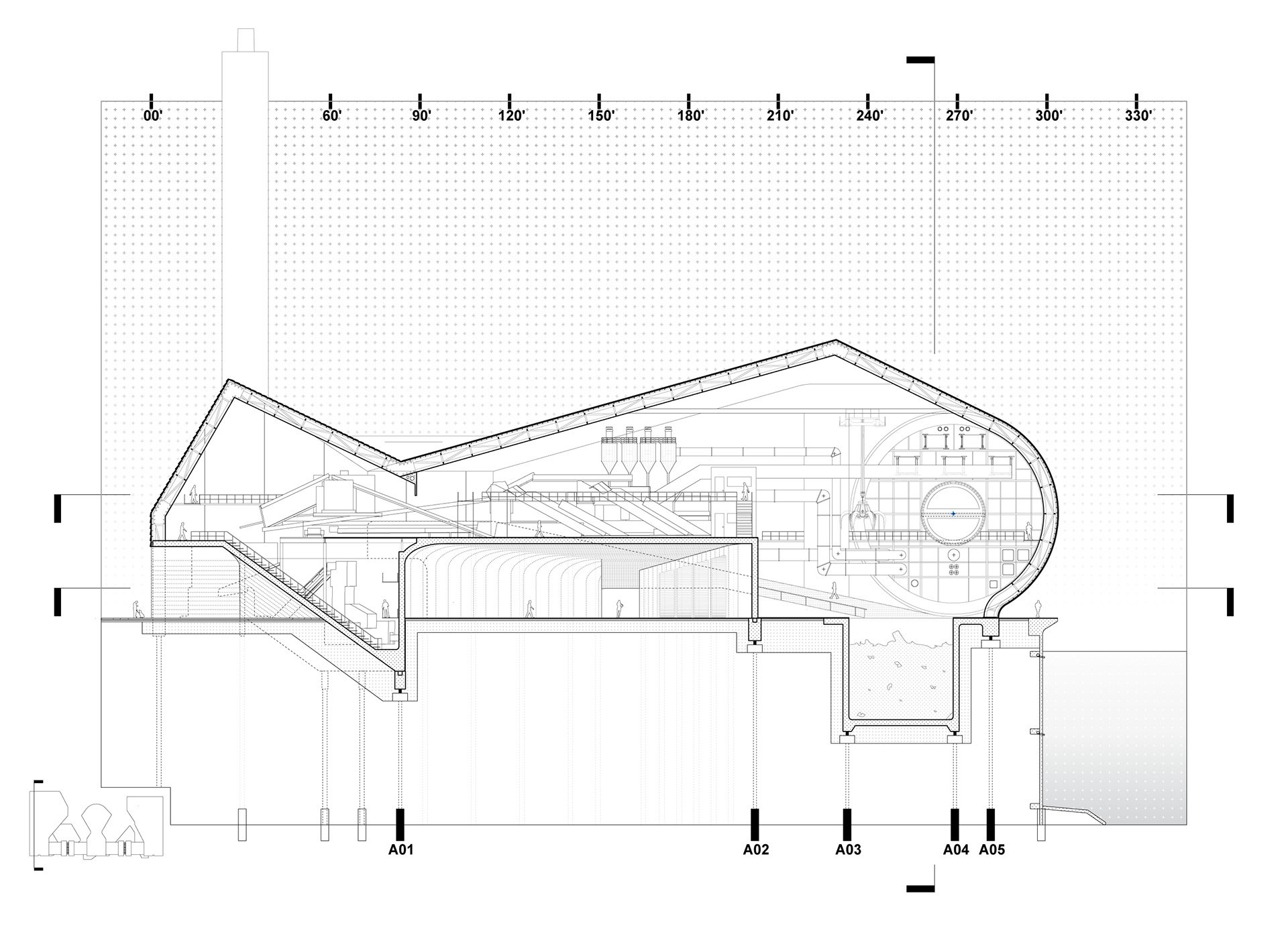

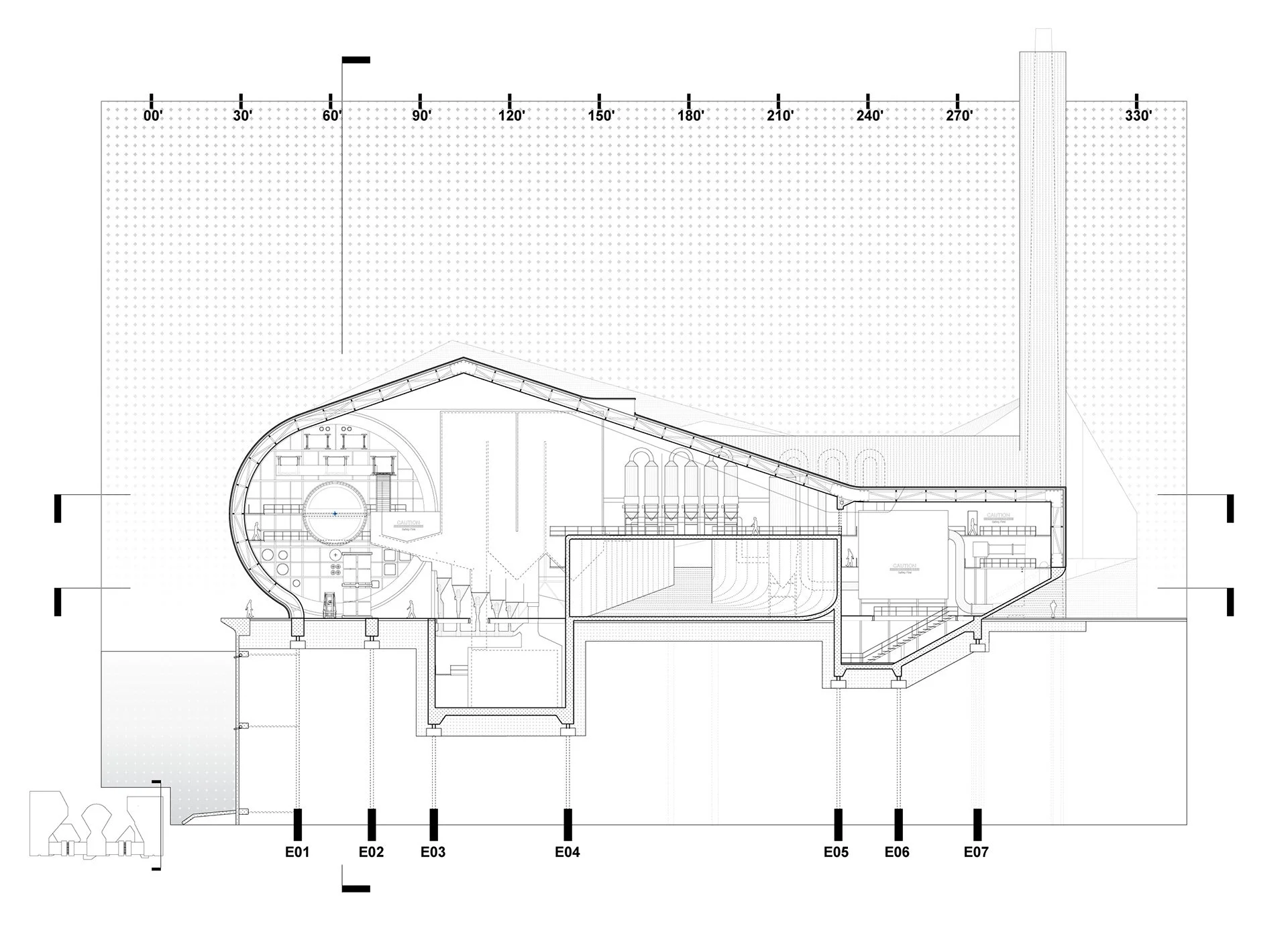

Incinerator Facility
Orthographic Section
DIGITAL
1980X1080 PX
Incinerator Facility - East Facade
Perspective render
DIGITAL
1980X1080 PX
The building takes a different character as it faces the street life.
The building takes a different stance and character towards Manhattan, drifting away from the robust industrial character. Each building contains two massing that are separated by a cross pathway, but caressed by the jutting tangent roof.

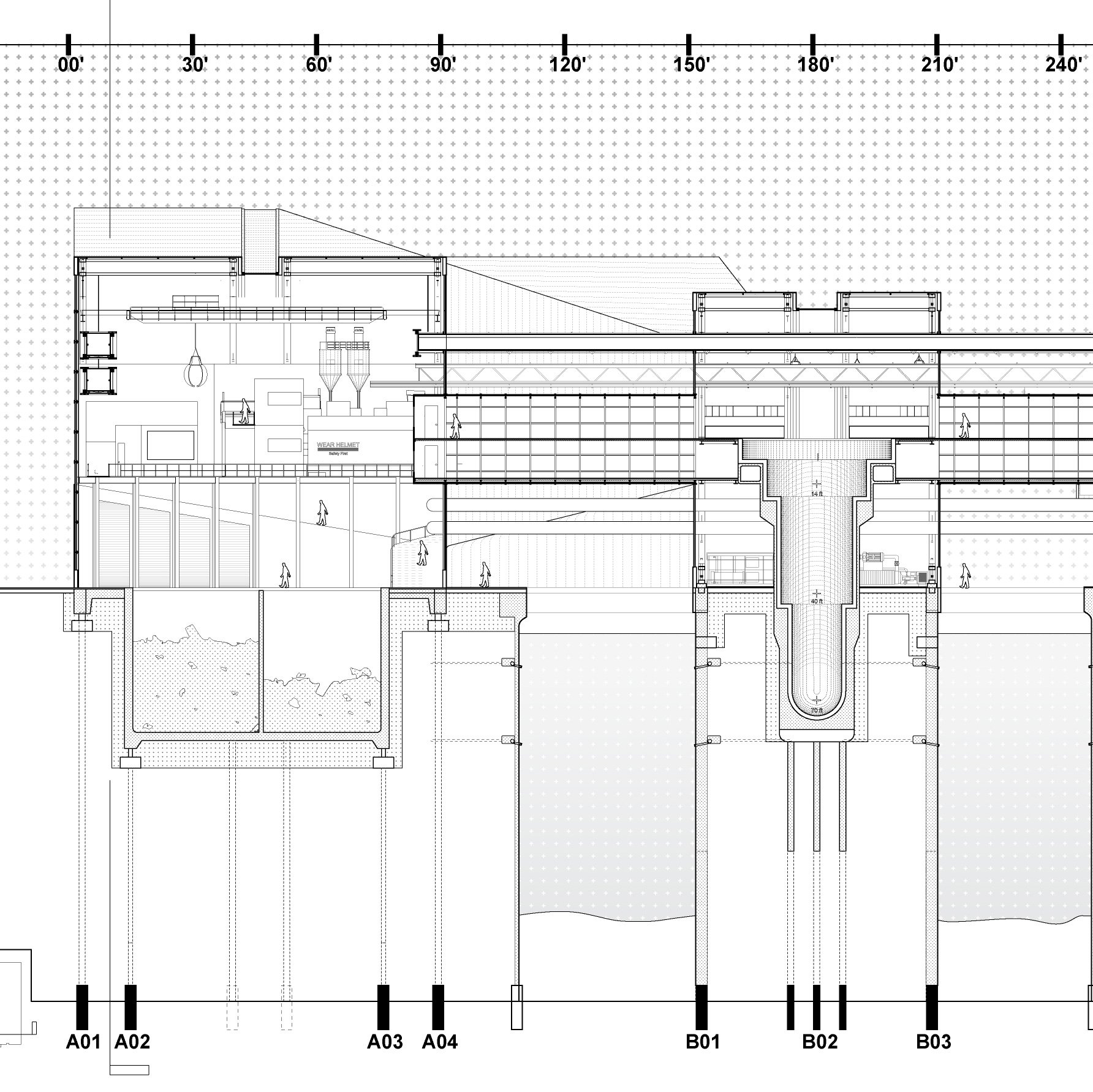

Deep Diving pools Facility
Orthographic Section
DIGITAL
1980X1080 PX
Recycling center Facility
Orthographic Section
DIGITAL
1980X1080 PX
-

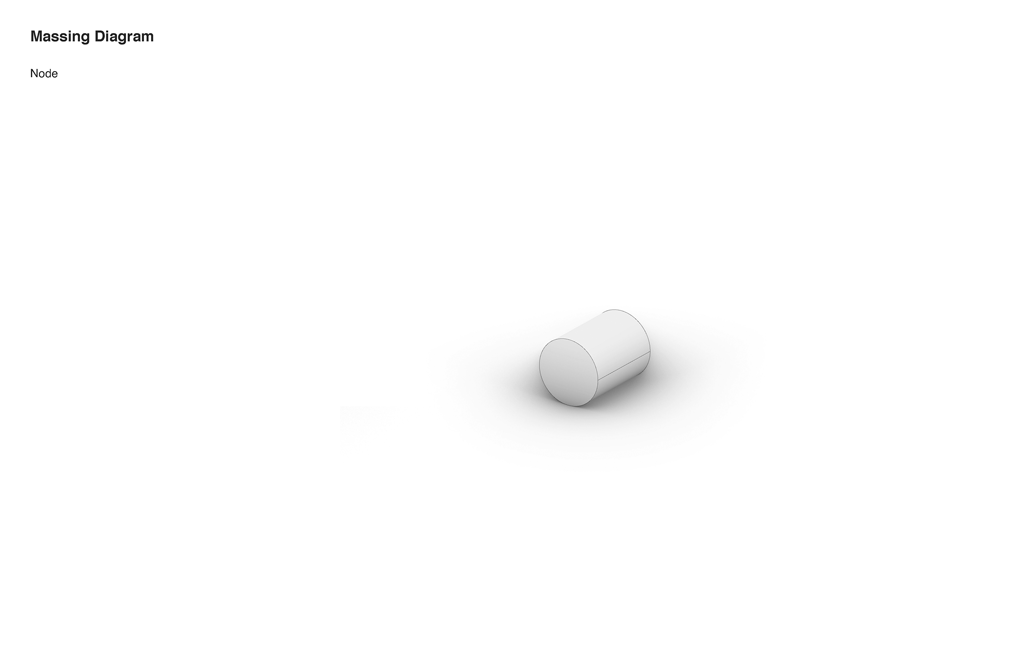

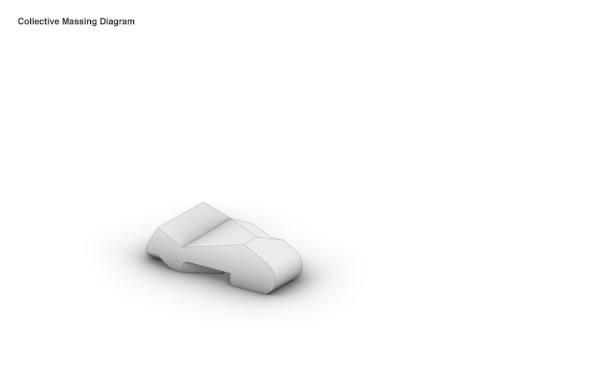

MASSING OPERATION
A tangent roof line is extended to dictate the form according to programmatic needs
-

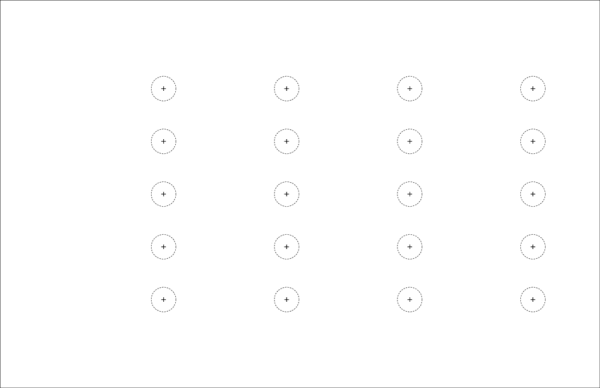

FIVE NODES
The waters edge façade is unified with the circular node that runs all the infrastructure and waste circulation.
-

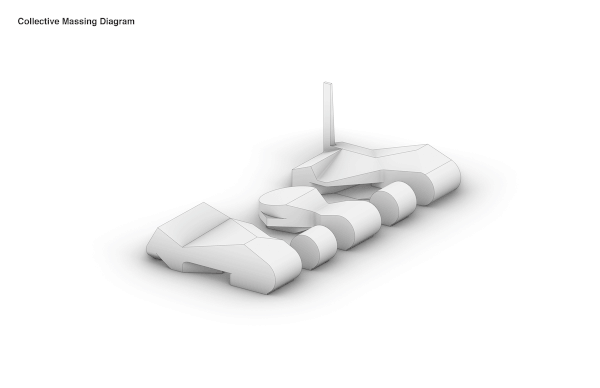

PROGRAMMATIC IDENTIFICATION
The Deep Diving Pool Facility is sandwiched between the Recycling Center and the Incinerator Facility
PIER 37
WASTE TO ENERGY
Waste to Energy and Recycling Center. The project’s proposes to localize the collection and processing of waste and recyclables and incorporate a ‘Deep Diving’ pool facility to leverage the heat and energy byproducts of the waste-to-energy process.
The project takes on a schizophrenic characteristic between the waterfront (East River) to the street side (FDR Highway). The characteristics are expressed through form and material.
Five circular nodes are placed along the water edge, each shooting out a tangent roof line that dictates the form of the building.
